1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

Model Number : QYPV-32S

Supply Ability : 5000 pcs/week

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Delivery Time : 5-8 work days

Certification : CE

MOQ : 1 pcs

Packaging Details : Box

Place of Origin : China

Brand Name : LLH

Contact Now

QY Series

AC Fuse 690VAC/DC Fuse 1000VDC

QY series fuse holder is made of refractory material,and meets the standard of IEC 60947-3.The maximum rated voltage is 1000V and the maximum current is32A.As a short circuit and over-current protector,it is widely used in the high and low voltage distribution system,control system,and electrical equipments,like distribution box and inverter.

Product Beneﬁts

1.DIN35 Rail lnstallation,Easy to Install

2. Adjustable terminal block, Wiring ﬁrm

3.Fire-retardant shell,high temperature resistance

4.Flexible installation,Easy to replace

Appearance Introduction
1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

Dimensions (mm)

Meaning and Classiﬁcation Models

1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

Technical Data

QYPV-32S
According to	IEC60947-3
Electrical Characteristics
Rated Working Voltage	690VAC/1000VDC
Rated Current	32A
Breaking Capacity	20kA
Max Power Dissipation	DC 5W /AC 3W
Control and Indication
Connection and lnstallation Wire	2.5 -6mm 2
Terminal Screws	M3.5
Torque	0.8~1.2N·m
Degree of Protection	IP20
Installation Environment
Fuse Size	10×38mm
Operating Temperature Range	-30~+70°C
Mounting	DIN rail IEC/EN 60715
Pollution Degree	3
Relative Humidity	+20°C ≤ 95%, +40°C ≤ 50%,
Installation Class	III
Weight	0.07 kg Per pole

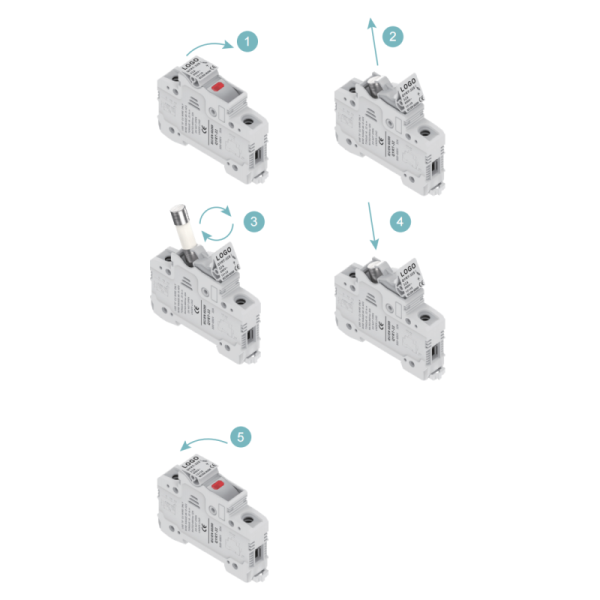

Replacement Fuse
1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

Installation
